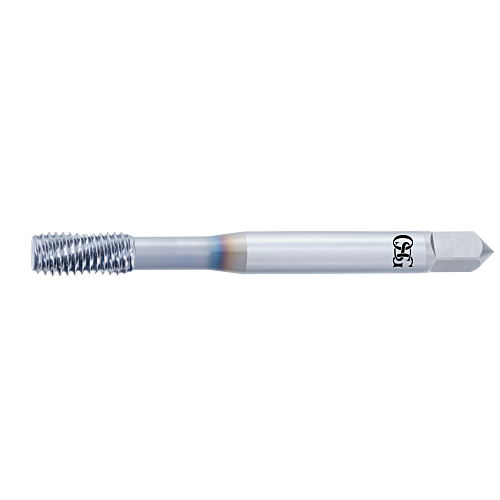

OSG M 1,4x0,3 GRT (FORM F) DIN2174
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
73 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 48423115 | GRT (FORM F) |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
1.4
THREAD PITCH/THREAD PER INCH (TP_TPI)
0.3000
CONNECTION DIAMETER (DCON)
2.5000
DIN
2174
DRIVE SIZE (DRVS)
2.1000
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
40.00
FLUTE COUNT (NOF)
0.00
PREMACHINED HOLE DIAMETER (PHD)
1,26~1,28
TAP TYPE
Forming tap
THREAD CHAMFER LENGTH (THCHL)
1.00
THREAD CHAMFER TYPE FORM (THCHT)
F
THREAD LENGTH (THLGTH)
7.00
THREAD TOLERANCE
ISO1-4HX
TYPE
1
PHD_MAX
1.2800
PHD_MIN
1.2600
THREAD DIAMETER (TD_MM)
0.0393
THREAD DIAMETER (TD_MM)
1.4000
THREAD PITCH (TP)
0.3000
Material
Steel
Stainless steel
Aluminum alloys
Hardened steel
