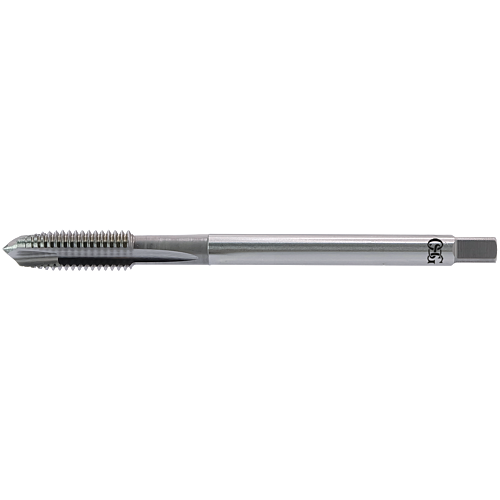

OSG G 3/4x14 POT DIN5156
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
12 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 63582400 | POT |
Specifications
THREAD TYPE
G
THREAD DIAMETER (TD)
3/4
THREAD PITCH/THREAD PER INCH (TP_TPI)
14.00
CONNECTION DIAMETER (DCON)
20.00
DIN
5156
DRIVE SIZE (DRVS)
16.00
HOLE TYPE APPLICATION
Through Hole
FUNCTIONAL LENGTH (LF)
140.00
FLUTE COUNT (NOF)
4.00
PREMACHINED HOLE DIAMETER (PHD)
24.5
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
4.00
THREAD CHAMFER TYPE FORM (THCHT)
B
THREAD LENGTH (THLGTH)
28.00
PHD_MAX
24.6580
PHD_MIN
24.1170
THREAD DIAMETER (TD_MM)
1.0410
THREAD DIAMETER (TD_MM)
26.4410
THREAD PITCH (TP)
1.8143
THREAD PER INCH (TPI)
14.00
Material
Steel
Cast iron
Aluminum alloys
Download format drawings
