OSG G 5/8x14 SFT DIN5156

Add to Wish List
Be the first to review this product
£0.00 Net price excl. VAT
Sign In / Register

This product is available in the warehouse of our European headquarters. The delivery time is approx. 2 working days.

0 in stock (UK Warehouse)
Other warehouses :
24 in stock (Europe Warehouse)
EDP Family
63682300 SFT

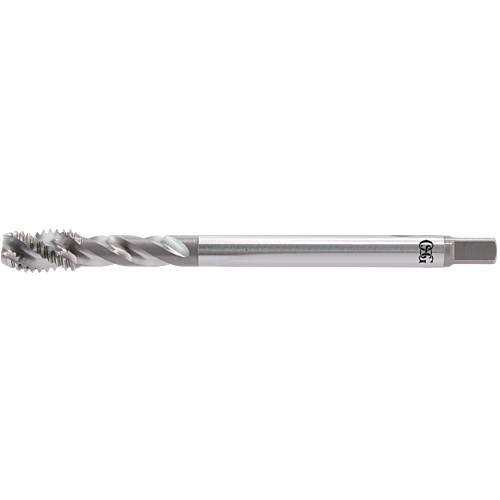

main product photo
Specifications
THREAD TYPE
G
THREAD DIAMETER (TD)
5/8
THREAD PITCH/THREAD PER INCH (TP_TPI)
14.00
CONNECTION DIAMETER (DCON)
18.00
DIN
5156
DRIVE SIZE (DRVS)
14.5000
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
125.00
FLUTE COUNT (NOF)
4.00
PREMACHINED HOLE DIAMETER (PHD)
21
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
25.00
PHD_MAX
21.1280
PHD_MIN
20.5870
THREAD DIAMETER (TD_MM)
0.9020
THREAD DIAMETER (TD_MM)
22.9110
THREAD PITCH (TP)
1.8143
THREAD PER INCH (TPI)
14.00
Material
P
Steel
K
Cast iron
N
Aluminum alloys
Download format drawings
