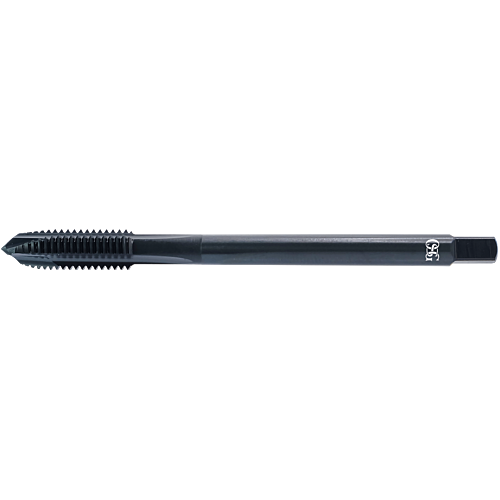

OSG MF 3x0,35 VA-POT DIN 374
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
121 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 63713960 | VA-POT |
Specifications
THREAD TYPE
MF
THREAD DIAMETER (TD)
3
THREAD PITCH/THREAD PER INCH (TP_TPI)
0.3500
CONNECTION DIAMETER (DCON)
2.2000
DIN
374
HOLE TYPE APPLICATION
Through Hole
FUNCTIONAL LENGTH (LF)
56.00
FLUTE COUNT (NOF)
3.00
PREMACHINED HOLE DIAMETER (PHD)
2.65
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
4.00
THREAD CHAMFER TYPE FORM (THCHT)
B
THREAD LENGTH (THLGTH)
9.00
THREAD TOLERANCE
ISO2-6H
PHD_MAX
2.7210
PHD_MIN
2.6210
THREAD DIAMETER (TD_MM)
0.1181
THREAD DIAMETER (TD_MM)
3.00
THREAD PITCH (TP)
0.3500
Material
Steel
Stainless steel
Cast iron
Download format drawings
