OSG G 1/2x14 SH-SFT DIN5156

Add to Wish List
Be the first to review this product
£0.00 Net price excl. VAT
Sign In / Register

This product is available in the warehouse of our European headquarters. The delivery time is approx. 2 working days.

0 in stock (UK Warehouse)
Other warehouses :
25 in stock (Europe Warehouse)
EDP Family
72282200 SH-SFT
Key Features
  • HSSE low spiral-fluted cutting tap for blind holes
  • Bright finish
  • For alloyed steels ≥ 1100N/mm²
  • Short chip creation

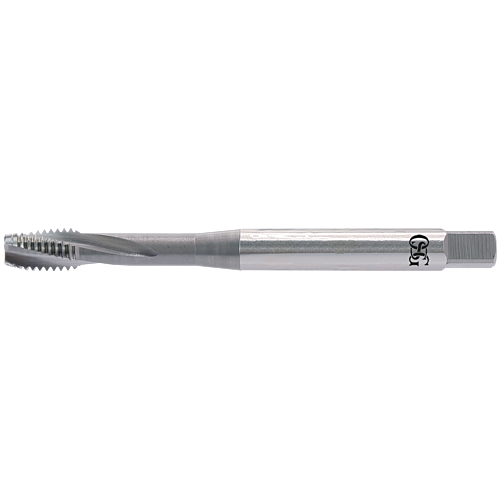

main product photo
Specifications
THREAD TYPE
G
THREAD DIAMETER (TD)
1/2
THREAD PITCH/THREAD PER INCH (TP_TPI)
14.00
CONNECTION DIAMETER (DCON)
16.00
DIN
5156
DRIVE SIZE (DRVS)
12.00
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
125.00
FLUTE COUNT (NOF)
4.00
PREMACHINED HOLE DIAMETER (PHD)
19
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
3.00
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
25.00
PHD_MAX
19.1720
PHD_MIN
18.6310
THREAD DIAMETER (TD_MM)
0.8250
THREAD DIAMETER (TD_MM)
20.9550
THREAD PITCH (TP)
1.8143
THREAD PER INCH (TPI)
14.00
Material
P
Steel
K
Cast iron
N
Aluminum alloys
Download format drawings
