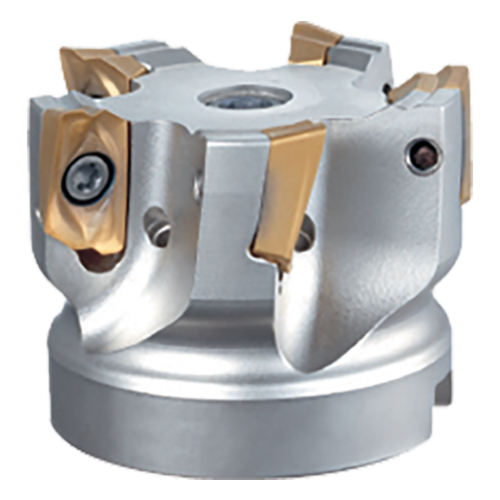

OSG PSE11R080M27-10
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
7 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 7801007 | PSE BORE |
Key Features
- 90° shoulder cutter
- 2 corners inserts with bottom notch
- Bore type
- 40 - 100 mm
Specifications
DEPTH OF CUT MAXIMUM (APMX)
10.00
APPLICABLE INSERTS TYPE
ZDT11
KEYWAY DEPTH (B)
7.00
CUTTING DIAMETER (DC)
80.00
CONNECTION DIAMETER (DCON)
27.00
CONTACT SURFACE DIAMETER MACHINE SIDE (DCSFMS)
60.00
DESIGNATION
PSE11R080M2710
KEYWAY WIDTH (KWW)
12.4000
FUNCTIONAL LENGTH (LF)
50.00
TYPE
2
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
10.00
Material
Steel
Stainless steel
Cast iron
Aluminum alloys
Titanium alloys
Hardened steel
Cutting conditions
