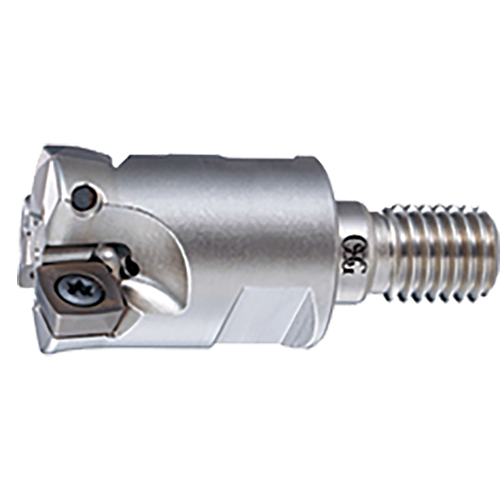

OSG PHC12R040SF16-3
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
5 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 7801509 | PHC SF |
Key Features
- High feed radius cutter
- 4 corners high feed inserts
- Screw fit type
- 16 - 40 mm
Specifications
DEPTH OF CUT MAXIMUM (APMX)
2.00
APPLICABLE INSERTS TYPE
SXMT12…
CONNECTION RETENTION KNOB THREAD SIZE (CRKS)
16.00
CUTTING DIAMETER (DC)
23.4000
CONNECTION DIAMETER (DCON)
17.00
CONTACT SURFACE DIAMETER MACHINE SIDE (DCSFMS)
28.00
CUTTING DIAMETER MAXIMUM (DCX)
40.00
DESIGNATION
PHC12R040SF163
FUNCTIONAL LENGTH (LF)
40.00
WRENCH SIZE
22
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
3.00
Material
Steel
Stainless steel
Cast iron
Titanium alloys
Hardened steel
