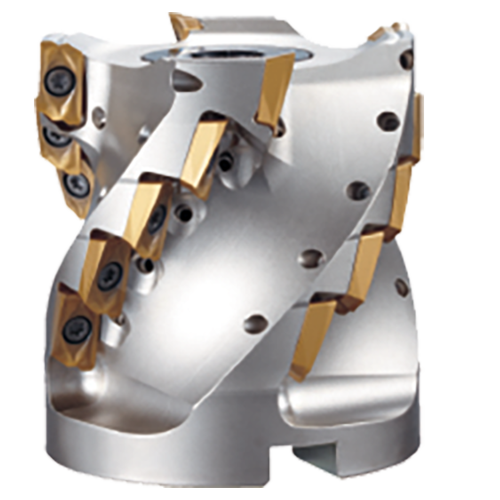

OSG PSEL15R050M22-3-50
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
2 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 7802850 | PSEL BORE |
Key Features
- 90° shoulder cutter with long length of cut
- 2 corners inserts with bottom notch
- Bore type
- 50 - 80 mm
Specifications
DEPTH OF CUT MAXIMUM (APMX)
50.5000
APPLICABLE INSERTS TYPE
ZDKT150
KEYWAY DEPTH (B)
6.3000
CUTTING DIAMETER (DC)
50.00
CONNECTION DIAMETER (DCON)
22.00
CONTACT SURFACE DIAMETER MACHINE SIDE (DCSFMS)
45.00
DESIGNATION
PSEL15R050M22350
INSERTS PER FLUTE
4
INSERTS TOTAL
12
KEYWAY WIDTH (KWW)
10.4000
FUNCTIONAL LENGTH (LF)
74.00
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
3.00
Material
Steel
Stainless steel
Cast iron
Aluminum alloys
Titanium alloys
Hardened steel
