OSG PSFL09R032SS32-2-36
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
2 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 7803700 | PSFL SS |

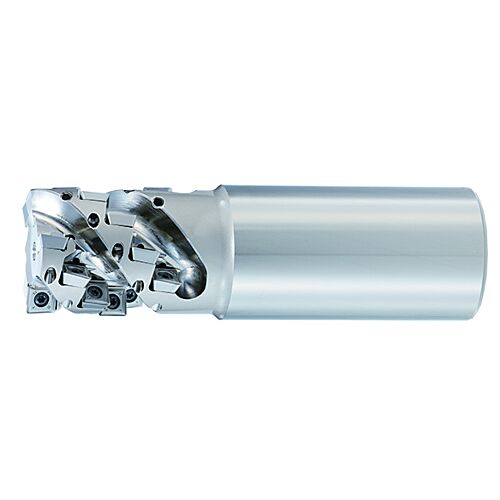

Key Features
- 90° shoulder cutter with long length of cut
- 4 corners inserts with bottom notch
- Cylindrical type, with internal coolant
- 32 - 40 mm
Specifications
DEPTH OF CUT MAXIMUM (APMX)
36.00
APPLICABLE INSERTS TYPE
SD*T09
CUTTING DIAMETER (DC)
32.00
CONNECTION DIAMETER (DCON)
32.00
DESIGNATION
PSFL09R032SS32236
INSERTS PER FLUTE
5
INSERTS TOTAL
10
FUNCTIONAL LENGTH (LF)
140.00
HEAD LENGTH (LH)
60.00
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
2.00
Material
Steel
Stainless steel
Cast iron
Aluminum alloys
Titanium alloys
Hardened steel
Cutting conditions
