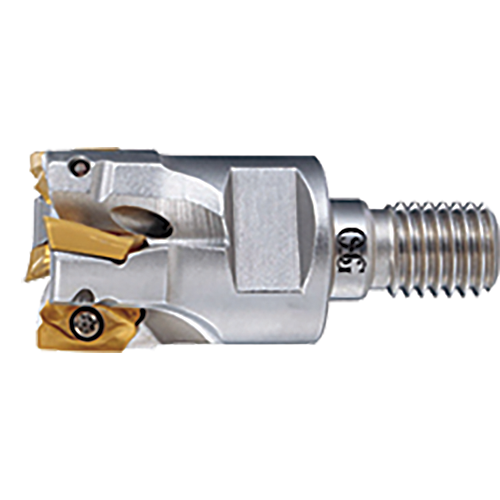

OSG PSE07R016SF8-4
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
2 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 7803824 | PSE SF |
Specifications
DEPTH OF CUT MAXIMUM (APMX)
6.00
APPLICABLE INSERTS TYPE
ZD…T07…
CONNECTION RETENTION KNOB THREAD SIZE (CRKS)
7.00
CUTTING DIAMETER (DC)
16.00
CONNECTION DIAMETER (DCON)
8.5000
CONTACT SURFACE DIAMETER MACHINE SIDE (DCSFMS)
15.00
DESIGNATION
PSE07R016SF84
WRENCH SIZE
10
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
4.00
Material
Steel
Stainless steel
Cast iron
Aluminum alloys
Titanium alloys
Hardened steel
