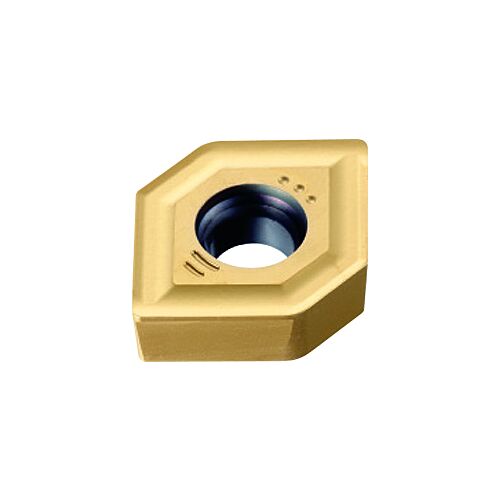

OSG XAHT060525SR-GM XP3035
£0.00 Net price excl. VAT
OSG XAHT060525SR-GM XP3035 is available to buy in increments of 10
0 in stock (UK Warehouse)
Other warehouses :
30 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 7814064 | PAO Inserts |
Specifications
CLEARANCE ANGLE MAJOR (AN)
3.00
DEPTH OF CUT MAXIMUM (APMX)
3.5000
WIPER EDGE LENGTH (BS)
10.00
DESIGNATION
XAHT060525SRGM
GRADE
XP3035
INSCRIBED CIRCLE DIAMETER (IC)
17.1000
CUTTING EDGE LENGTH (L)
10.00
CORNER RADIUS (RE)
2.5000
INSERT THICKNESS (S)
5.6600
TYPE
2
Material
Steel
Stainless steel
Cast iron
