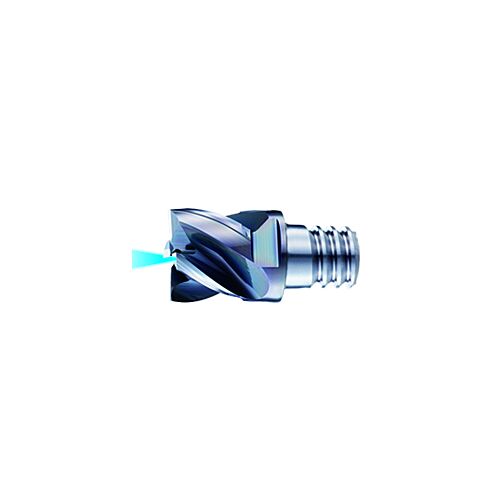

OSG PXSE160C16-04R030-O XP3225
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
1 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 7830064 | PXSE-O |
Key Features
- Variable helix solid carbide head with coolant hole
- Up to 5xD application in 55 HRC work materials
- For PXMZ straight shank holder
- 12 - 25 mm
Specifications
DEPTH OF CUT MAXIMUM (APMX)
11.2000
HEAD CONNEXION C (CS)
C16
CUTTING DIAMETER (DC)
16.00
CONNECTION DIAMETER (DCON)
15.7000
DESIGNATION
PXSE160C1604R030O
FLUTE HELIX ANGLE (FHA)
38
GRADE
XP3225
FUNCTIONAL LENGTH (LF)
18.7000
CORNER RADIUS (RE)
3.00
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
4.00
Material
Steel
Stainless steel
Cast iron
Titanium alloys
Hardened steel
Download format drawings
Cutting conditions
