OSG PXBM160C16-06R080 XP3320
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
3 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 7830302 | PXBM |
Key Features

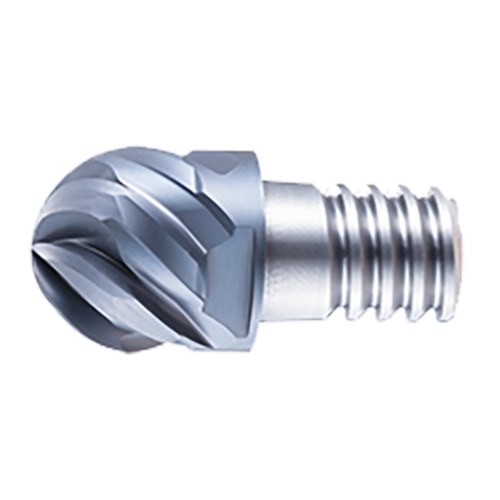

- 3 flutes ball nose solid carbide head
- Up to 5xD application in 60 HRC work materials
- For PXMZ straight shank holder
- 10 - 20 mm
Specifications
DEPTH OF CUT MAXIMUM (APMX)
11.2000
HEAD CONNEXION C (CS)
C16
CUTTING DIAMETER (DC)
16.00
CONNECTION DIAMETER (DCON)
15.7000
DESIGNATION
PXBM160C1606R080
FLUTE HELIX ANGLE (FHA)
45
GRADE
XP3320
FUNCTIONAL LENGTH (LF)
18.7000
CORNER RADIUS (RE)
8.00
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
6.00
Material
Steel
Stainless steel
Cast iron
Titanium alloys
Hardened steel
Download format drawings
Cutting conditions
