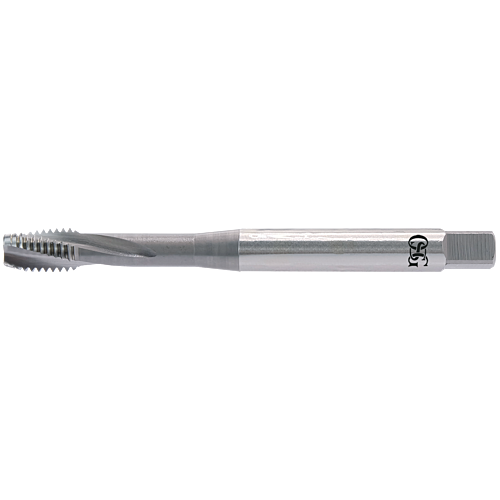

OSG M 3x0,5 CPM-SFT DIN 371
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
32 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 81913860 | CPM-SFT |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
3
THREAD PITCH/THREAD PER INCH (TP_TPI)
0.5000
CONNECTION DIAMETER (DCON)
3.5000
DIN
371
DRIVE SIZE (DRVS)
2.7000
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
56.00
USABLE LENGTH (LU)
18
FLUTE COUNT (NOF)
3.00
PREMACHINED HOLE DIAMETER (PHD)
2.5
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
3.00
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD TOLERANCE
ISO2-6H
TYPE
1
PHD_MAX
2.5990
PHD_MIN
2.4590
THREAD DIAMETER (TD_MM)
0.1181
THREAD DIAMETER (TD_MM)
3.00
THREAD PITCH (TP)
0.5000
Material
Steel
Cast iron
Hardened steel
Download format drawings
