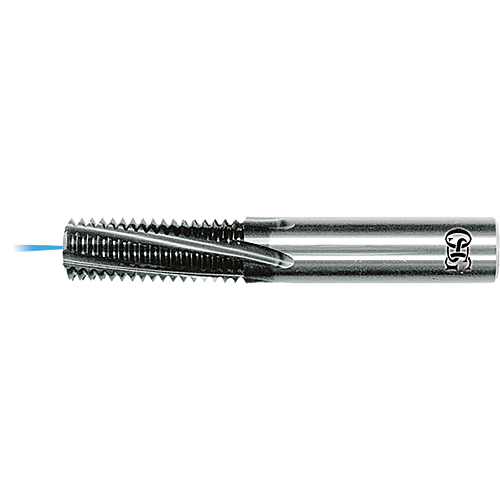

OSG P0,5x6x16,5-INT WXO-ST-PNC

£0.00 Net price excl. VAT
Sign In / Register

This product is available in the warehouse of our European headquarters. The delivery time is approx. 2 working days.

0 in stock (UK Warehouse)
Other warehouses :
8 in stock (Europe Warehouse)
EDP Family
8304710 WXO-ST-PNC
Key Features
  • Carbide thread milling cutter with Centre through coolant
  • WX coating
  • For all materials and hardened steels up to 45 HRC
  • "ThreadPro" NC code generator software available
Specifications
THREAD TYPE
M
CUTTING DIAMETER (DC)
6.00
THREAD PITCH/THREAD PER INCH (TP_TPI)
0.5000
DEPTH OF CUT MAXIMUM (APMX)
16.5000
CONNECTION DIAMETER (DCON)
6.00
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
65.00
MIN CUTTING BORE DIAMETER
M8
FLUTE COUNT (NOF)
4.00
TAP TYPE
Thread milling cutter
TYPE
2
RPRG
2.9700
THREAD PITCH (TP)
0.5000
Material
P
Steel
M
Stainless steel
K
Cast iron
N
Aluminum alloys
H
Hardened steel
Download format drawings
Cutting conditions
