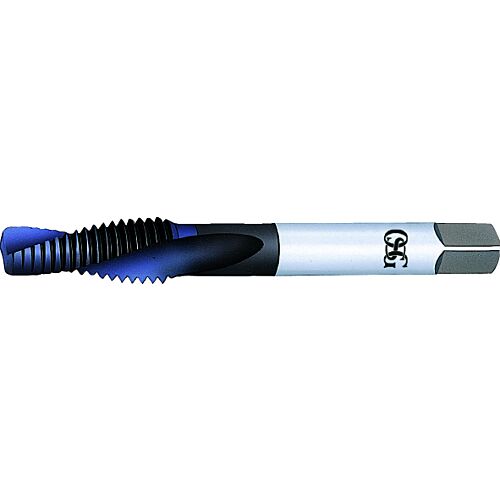

OSG M 3x0,5 US-AL-RFT
£0.00 Net price excl. VAT
2 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
0 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 8311269 | US-AL-RFT |
Key Features
- HSSE spiral-flute cutting tap for through holes
- Multilayer TiCN coating
- For high speed tapping in aluminium and cast aluminium
- Right-hand cut with left-hand flute for chip evacuation towards front
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
3
THREAD PITCH/THREAD PER INCH (TP_TPI)
0.5000
CONNECTION DIAMETER (DCON)
4.00
DRIVE SIZE (DRVS)
3.2000
HOLE TYPE APPLICATION
Through Hole
FUNCTIONAL LENGTH (LF)
46.00
USABLE LENGTH (LU)
19
FLUTE COUNT (NOF)
2.00
PREMACHINED HOLE DIAMETER (PHD)
2.5
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
6.00
THREAD CHAMFER TYPE FORM (THCHT)
A
THREAD LENGTH (THLGTH)
11.00
THREAD TOLERANCE
ISO2-6H
TYPE
1
PHD_MAX
2.5990
PHD_MIN
2.4590
THREAD DIAMETER (TD_MM)
0.1181
THREAD DIAMETER (TD_MM)
3.00
THREAD PITCH (TP)
0.5000
