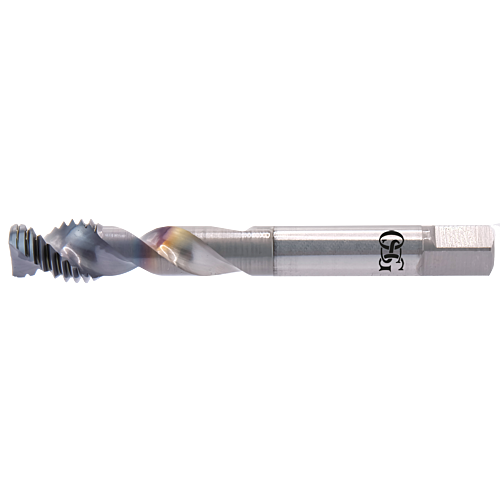

OSG M 3x0,5 US-AL-SFT
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
29 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 8311669 | US-AL-SFT |
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
3
THREAD PITCH/THREAD PER INCH (TP_TPI)
0.5000
CONNECTION DIAMETER (DCON)
4.00
DRIVE SIZE (DRVS)
3.2000
HOLE TYPE APPLICATION
Blind Hole
FUNCTIONAL LENGTH (LF)
46.00
USABLE LENGTH (LU)
19
FLUTE COUNT (NOF)
2.00
PREMACHINED HOLE DIAMETER (PHD)
2.5
TAP TYPE
Cutting tap
THREAD CHAMFER LENGTH (THCHL)
3.00
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
4.00
THREAD TOLERANCE
ISO2-6H
TYPE
1
PHD_MAX
2.5990
PHD_MIN
2.4590
THREAD DIAMETER (TD_MM)
0.1181
THREAD DIAMETER (TD_MM)
3.00
THREAD PITCH (TP)
0.5000
