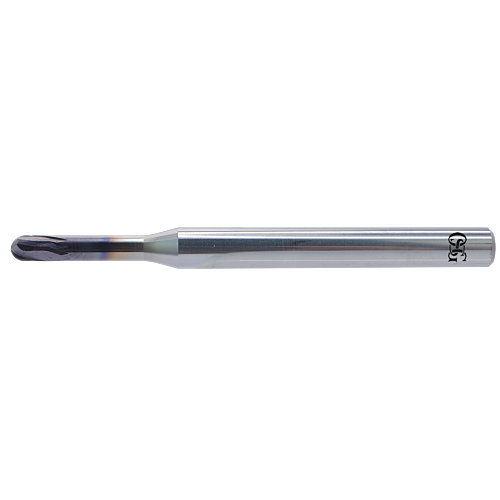

OSG R 1,5 FXS-EQD
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
52 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 8544015 | FXS-EQD |
Key Features
- Carbide end mill with TiAlN coating
- For general applications
- 2 flutes, 220 degree ball nose
Specifications
DEPTH OF CUT MAXIMUM (APMX)
2.3000
CUTTING DIAMETER (DC)
3.00
CONNECTION DIAMETER (DCON)
6.00
NECK DIAMETER (DN)
2.7000
FUNCTIONAL LENGTH (LF)
70.00
USABLE LENGTH (LU)
15
CORNER RADIUS (RE)
1.5000
TYPE
1
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
2.00
Material
Steel
Stainless steel
Cast iron
Titanium alloys
Hardened steel
Download format drawings
Cutting conditions
