OSG D 12xR3 WX-CRE
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
28 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 8549533 | WX-CRE |
Key Features

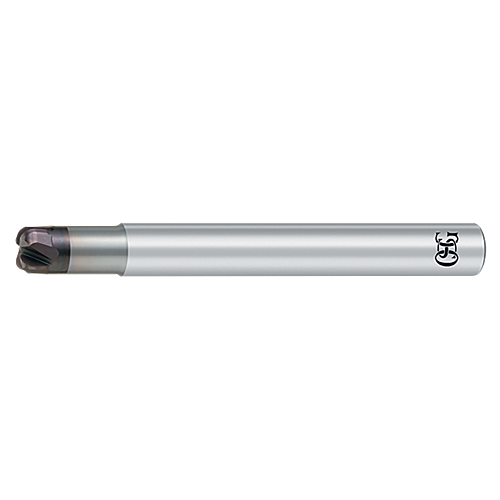

- Carbide end mill with WX coating
- For general applications
- Multi flute, super radius
Specifications
DEPTH OF CUT MAXIMUM (APMX)
5.00
CUTTING DIAMETER (DC)
12.00
CONNECTION DIAMETER (DCON)
12.00
NECK DIAMETER (DN)
11.00
FUNCTIONAL LENGTH (LF)
110.00
USABLE LENGTH (LU)
24
CORNER RADIUS (RE)
3.00
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
4.00
Material
Steel
Cast iron
Hardened steel
Download format drawings
Cutting conditions
