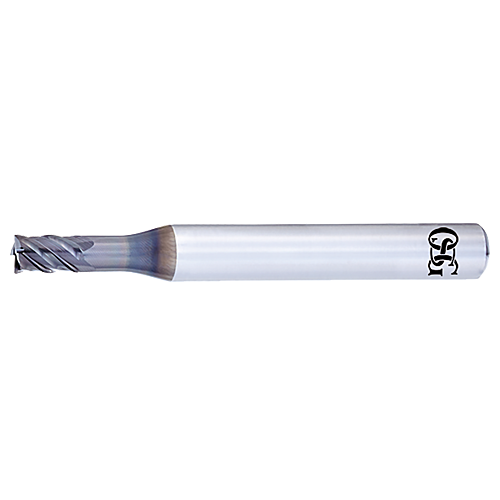

OSG D 5X15 AE-MSS-H
£0.00 Net price excl. VAT
14 in stock (Europe Warehouse)
Ordered before 17:00 will be delivered the following day
| EDP | Family |
|---|---|
| 8549832 | AE-MSS-H |
Specifications
DEPTH OF CUT MAXIMUM (APMX)
7.5000
CUTTING DIAMETER (DC)
5.00
CONNECTION DIAMETER (DCON)
6.00
NECK DIAMETER (DN)
4.8500
EFFECTIVE NECK LENGTH (Α) 0,5°
15.7200
EFFECTIVE NECK LENGTH (Α) 1º
16.3000
EFFECTIVE NECK LENGTH (Α) 1.5°
16.8800
FUNCTIONAL LENGTH (LF)
60.00
HEAD LENGTH (LH)
17.1000
USABLE LENGTH (LU)
15
TOOL PIECE ANGLE (ΘK)
1.6800
TYPE
1
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
4.00
Material
Steel
Stainless steel
Cast iron
Titanium alloys
Hardened steel
Download format drawings
