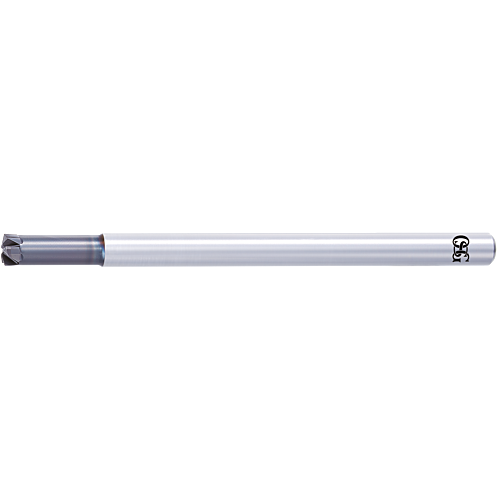

OSG 3XR0,3 AE-HFE-H
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
9 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 8550021 | AE-HFE-H |
Specifications
DEPTH OF CUT MAXIMUM (APMX)
1.3000
CUTTING DIAMETER (DC)
3.00
CUTTING DIAMETER FACE CONTACT (DCF)
1.1000
CONNECTION DIAMETER (DCON)
6.00
NECK DIAMETER (DN)
2.7000
EFFECTIVE NECK LENGTH (Α) 0,5°
9.3600
EFFECTIVE NECK LENGTH (Α) 1º
9.7000
EFFECTIVE NECK LENGTH (Α) 1.5°
10.0400
EFFECTIVE NECK LENGTH (Α) 2º
10.4000
EFFECTIVE NECK LENGTH (Α) 3º
11.2200
FUNCTIONAL LENGTH (LF)
60.00
HEAD LENGTH (LH)
14.7000
USABLE LENGTH (LU)
9
TOOL PIECE ANGLE (ΘK)
5.9500
CORNER RADIUS (RE)
0.2000
SECONDARY RADIUS (RE2)
1.4630
TYPE
1
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
5.00
Material
Steel
Stainless steel
Cast iron
Titanium alloys
Hardened steel
Download format drawings
Cutting conditions
