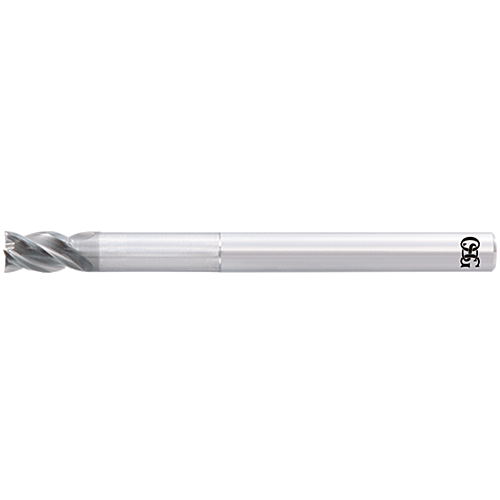

OSG D 10X30 AE-VMSS
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
6 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 8556830 | AE-VMSS |
Key Features
- First choice in quality and performance
- Carbide end mill with Duarise coating
- Wide variety in applications and work materials
- 4 flutes, variable helix and unequal spacing
- Stub length of cut, long neck type
Specifications
DEPTH OF CUT MAXIMUM (APMX)
15.00
CUTTING DIAMETER (DC)
10.00
CONNECTION DIAMETER (DCON)
10.00
NECK DIAMETER (DN)
9.7000
FUNCTIONAL LENGTH (LF)
80.00
USABLE LENGTH (LU)
30
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
4.00
Material
Steel
Stainless steel
Cast iron
Aluminum alloys
Titanium alloys
Hardened steel
Download format drawings
Cutting conditions
