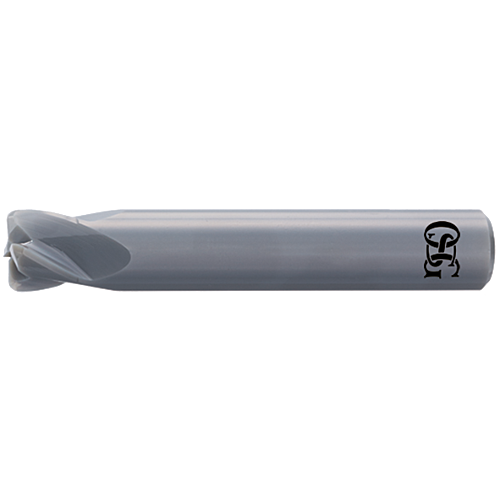

OSG D12xR1,5 CM-RMS
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
4 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 8557130 | CM-RMS |
Key Features
- Ceramic end mill, peripheral cutting edge type
- Optimum flute geometry
- Negative cutter form
- 4 or 6 flutes specification based on your application needs
Specifications
DEPTH OF CUT MAXIMUM (APMX)
9.00
CUTTING DIAMETER (DC)
12.00
CONNECTION DIAMETER (DCON)
12.00
FUNCTIONAL LENGTH (LF)
70.00
CORNER RADIUS (RE)
1.5000
TYPE
1
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
4.00
Material
Titanium alloys
Download format drawings
Cutting conditions
