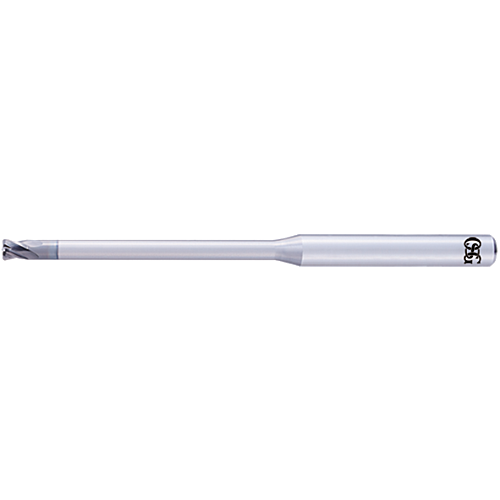

OSG D1XR0,1X12 AE-CPR4-H
£0.00 Net price excl. VAT
31 in stock (Europe Warehouse)
Ordered before 17:00 will be delivered the following day
| EDP | Family |
|---|---|
| 8557550 | AE-CPR4-H |
Specifications
DEPTH OF CUT MAXIMUM (APMX)
0.8000
CUTTING DIAMETER (DC)
1.00
CONNECTION DIAMETER (DCON)
4.00
NECK DIAMETER (DN)
0.9400
EFFECTIVE NECK LENGTH (Α) 0,5°
12.7100
EFFECTIVE NECK LENGTH (Α) 1º
13.2500
EFFECTIVE NECK LENGTH (Α) 1.5°
13.7300
EFFECTIVE NECK LENGTH (Α) 2º
14.2500
EFFECTIVE NECK LENGTH (Α) 3º
15.3900
FUNCTIONAL LENGTH (LF)
45.00
HEAD LENGTH (LH)
18.00
USABLE LENGTH (LU)
12
TOOL PIECE ANGLE (ΘK)
4.7900
CORNER RADIUS (RE)
0.1000
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
4.00
Material
Steel
Stainless steel
Cast iron
Titanium alloys
Hardened steel
Download format drawings
