OSG D 7x30D CAO-GDXL

Add to Wish List
Be the first to review this product
£0.00 Net price excl. VAT
Sign In / Register

This product is available in the warehouse of our European headquarters. The delivery time is approx. 2 working days.

0 in stock (UK Warehouse)
Other warehouses :
4 in stock (Europe Warehouse)
EDP Family
8567470 CAO-GDXL
Key Features
  • Carbide drill with internal coolant, bright finish
  • Up to 15xD, 20xD and 30xD
  • For aluminium and cast aluminium
  • 23 sizes

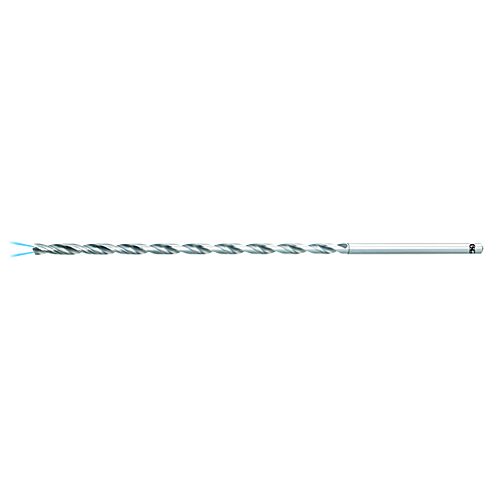

main product photo
Specifications
CUTTING DIAMETER (DC)
7.00
CONNECTION DIAMETER (DCON)
7.00
LENGTH CHIP FLUTE (LCF)
230.00
USABLE LENGTH (LU)
216
OVERALL LENGTH (OAL)
280.00
POINT LENGTH (PL)
1.6300
POINT ANGLE (SIG)
130.00
USABLE LENGTH DIAMETER RATIO (ULDR)
30.00
FLUTE TYPE
RSP30
FLUTE COUNT (NOF)
2.00
TOLERANCE CLASS CUTTING DIAMETER (TCDC)
h8
SHANK DIAMETER TOLERANCE (TCDMM)
H6
Material
N
Aluminum alloys
Download format drawings
Cutting conditions
