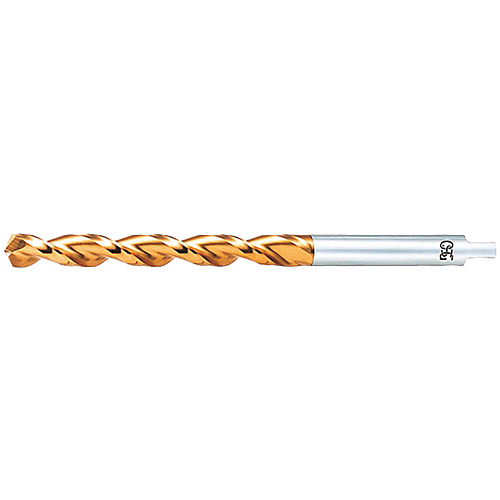

OSG 12,1 x 200x120 EX-GDXL
£0.00 Net price excl. VAT
4 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
2 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 8592121 | EX-GDXL |
Specifications
CUTTING DIAMETER (DC)
12.1000
CONNECTION DIAMETER (DCON)
12.1000
LENGTH CHIP FLUTE (LCF)
120.00
USABLE LENGTH (LU)
97
OVERALL LENGTH (OAL)
200.00
POINT LENGTH (PL)
2.8200
POINT ANGLE (SIG)
130.00
USABLE LENGTH DIAMETER RATIO (ULDR)
8.00
FLUTE TYPE
RSP38
FLUTE COUNT (NOF)
2.00
TOLERANCE CLASS CUTTING DIAMETER (TCDC)
h8
Material
Steel
Cast iron
Aluminum alloys
Hardened steel
Download format drawings
Cutting conditions
