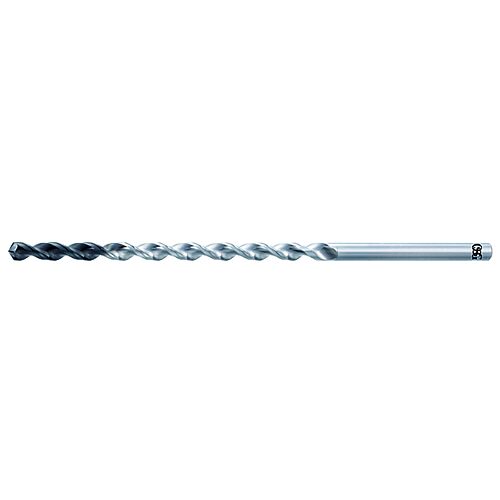

OSG D 9,3x15D TDXL
£0.00 Net price excl. VAT
2 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
3 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 8623093 | TDXL-15D |
Specifications
CUTTING DIAMETER (DC)
9.3000
CONNECTION DIAMETER (DCON)
9.3000
LENGTH CHIP FLUTE (LCF)
168.00
USABLE LENGTH (LU)
149
OVERALL LENGTH (OAL)
240.00
POINT LENGTH (PL)
2.6800
POINT ANGLE (SIG)
120.00
USABLE LENGTH DIAMETER RATIO (ULDR)
15.00
FLUTE TYPE
RSP40
FLUTE COUNT (NOF)
2.00
TOLERANCE CLASS CUTTING DIAMETER (TCDC)
h8
SHANK DIAMETER TOLERANCE (TCDMM)
H7
Material
Steel
Cast iron
Aluminum alloys
Download format drawings
Cutting conditions
