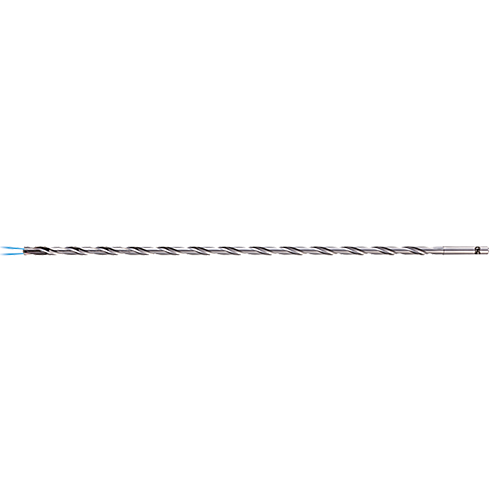

OSG D 5 ADO-40D
£0.00 Net price excl. VAT
1 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
16 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| 8717500 | ADO-40D |
Key Features
- First choice in quality and performance
- Carbide drill with internal coolant, EgiAs coating
- Double margin, up to 40xD
- For general purpose steels and cast iron
- 23 sizes
Specifications
CUTTING DIAMETER (DC)
5.00
CONNECTION DIAMETER (DCON)
5.00
LENGTH CHIP FLUTE (LCF)
215.00
SHANK LENGTH (LS)
49.00
USABLE LENGTH (LU)
200
OVERALL LENGTH (OAL)
265.00
POINT LENGTH (PL)
0.9100
POINT ANGLE (SIG)
140.00
USABLE LENGTH DIAMETER RATIO (ULDR)
40.00
FLUTE TYPE
RSP25
FLUTE COUNT (NOF)
2.00
TOLERANCE CLASS CUTTING DIAMETER (TCDC)
e8
SHANK DIAMETER TOLERANCE (TCDMM)
H6
Material
Steel
Stainless steel
Cast iron
Hardened steel
Download format drawings
Cutting conditions
