PlusLine R3 EPL-SB-EBM
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
90 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| EP01160600 | EPL-SB-EBM |
Key Features

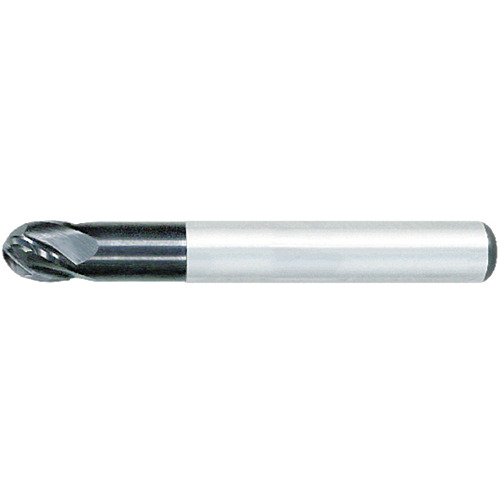

- Carbide end mill with TiAlN coating
- For general applications
- 4 flutes, ball nose
Specifications
DEPTH OF CUT MAXIMUM (APMX)
7.00
CUTTING DIAMETER (DC)
6.00
CONNECTION DIAMETER (DCON)
6.00
FUNCTIONAL LENGTH (LF)
57.00
USABLE LENGTH (LU)
18
CORNER RADIUS (RE)
3.00
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
4.00
Material
Steel
Hardened steel
Download format drawings
Cutting conditions
