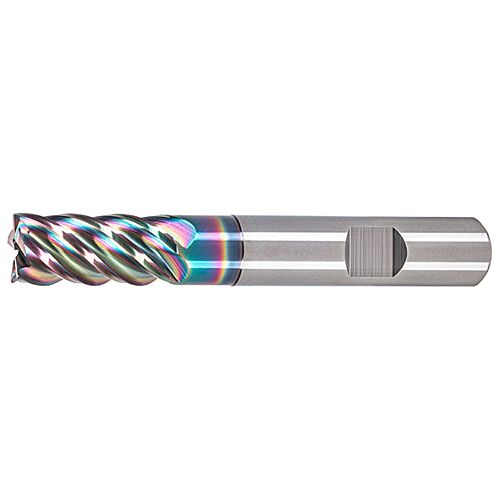

PlusLine D6 x R0,25 EPL-HP-5FL
£0.00 Net price excl. VAT
3 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
25 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| EP01940600 | EPL-HP-5FL |
Key Features
- Carbide end mill with EgiAs coating
- For general applications and exotic materials
- 5 flutes, variable helix and unequal spacing, corner radius
- Weldon shank
Specifications
DEPTH OF CUT MAXIMUM (APMX)
13.00
CUTTING DIAMETER (DC)
6.00
CONNECTION DIAMETER (DCON)
6.00
NECK DIAMETER (DN)
5.8000
FUNCTIONAL LENGTH (LF)
57.00
USABLE LENGTH (LU)
20
CORNER RADIUS (RE)
0.2500
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
5.00
SHANK TYPE
HB
Material
Steel
Stainless steel
Cast iron
Titanium alloys
Download format drawings
Cutting conditions
