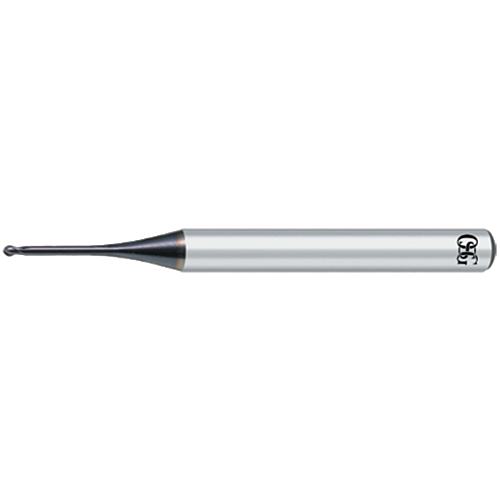

PlusLine R 0,15x0,6 EPS-LN-EBD
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
175 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| EP01950001 | EPS-LN-EBD |
Specifications
DEPTH OF CUT MAXIMUM (APMX)
0.1600
CUTTING DIAMETER (DC)
0.3000
CONNECTION DIAMETER (DCON)
4.00
NECK DIAMETER (DN)
0.2800
EFFECTIVE NECK LENGTH (Α) 0,5°
0.6300
EFFECTIVE NECK LENGTH (Α) 1º
0.6500
EFFECTIVE NECK LENGTH (Α) 1.5°
0.6800
EFFECTIVE NECK LENGTH (Α) 2º
0.7000
EFFECTIVE NECK LENGTH (Α) 2.5°
0.7200
EFFECTIVE NECK LENGTH (Α) 3º
0.7500
FUNCTIONAL LENGTH (LF)
45.00
USABLE LENGTH (LU)
0.6
TOOL PIECE ANGLE (ΘK)
14.0300
CORNER RADIUS (RE)
0.1500
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
2.00
Material
Steel
Stainless steel
Cast iron
Aluminum alloys
Titanium alloys
Hardened steel
Download format drawings
Cutting conditions
