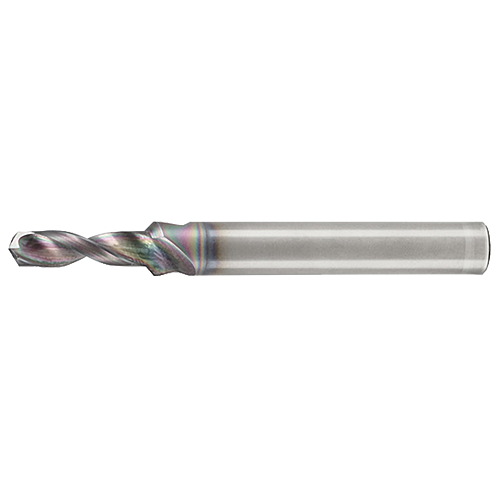

HY-PRO D 8,5x12 (M10x1,5) HYP-HP-SC-3D

£0.00 Net price excl. VAT
Sign In / Register
9 in stock (Europe Warehouse)
Ordered before 17:00 will be delivered the following day
EDP Family
EP0201169 HYP-HP-SC-3D
Specifications
DIAMETER
8.5000
SHANK SIZE
12.00
DRILL CUTTING LENGTH
35.00
NECK LENGTH
30
OVERALL LENGTH
89.00
POINT ANGLE (SIG)
140.00
CUTTING DIAMETER MAXIMUM (DCX)
12.00
STEP DIAMETER LENGTH (SDL)
30.00
STEP ANGLE (STA)
90
USABLE LENGTH DIAMETER RATIO (ULDR)
3.00
SPECIFICATION
M10x1,5
FLUTE TYPE
RSP30
FLUTE COUNT (NOF)
2.00
TOLERANCE CLASS CUTTING DIAMETER (TCDC)
h8
SHANK DIAMETER TOLERANCE (TCDMM)
H6
Material
P
Steel
M
Stainless steel
K
Cast iron
H
Hardened steel
