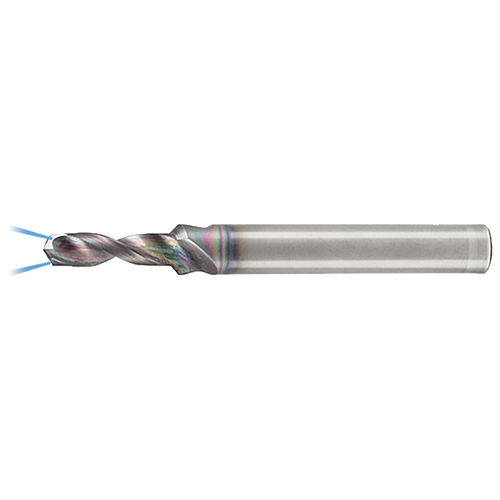

EP0202144 HY-PRO D 3,3x6 (M4x0,7) HYP-HPO-SC-3D
£0.00 Net price excl. VAT
3 in stock (UK Warehouse)
Ordered before 17:00 will be delivered the following day
Other warehouses :
1 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| EP0202144 | HYP-HPO-SC-3D |
Specifications
CUTTING DIAMETER (DC)
3.3000
CONNECTION DIAMETER (DCON)
6.00
LENGTH CHIP FLUTE (LCF)
16.00
USABLE LENGTH (LU)
12
OVERALL LENGTH (OAL)
66.00
POINT LENGTH (PL)
0.6000
POINT ANGLE (SIG)
140.00
CUTTING DIAMETER MAXIMUM (DCX)
6.00
STEP DIAMETER LENGTH (SDL)
12.00
STEP ANGLE (STA)
90
USABLE LENGTH DIAMETER RATIO (ULDR)
3.00
SPECIFICATION
M4x0,7
FLUTE TYPE
RSP30
FLUTE COUNT (NOF)
2.00
TOLERANCE CLASS CUTTING DIAMETER (TCDC)
h8
SHANK DIAMETER TOLERANCE (TCDMM)
H6
Material
Steel
Stainless steel
Cast iron
Hardened steel
Download format drawings
