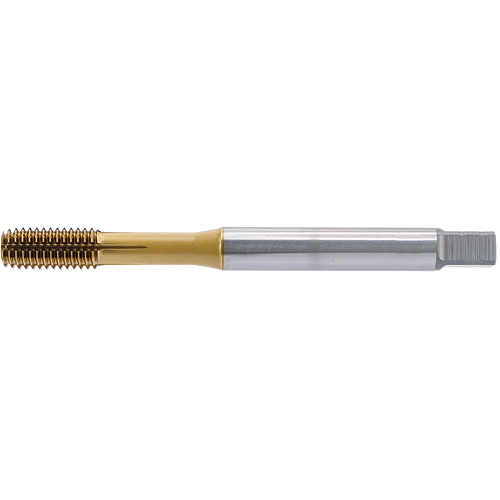

OSGEUR M 2x0,4 M-NRT (FORM E) DIN2174
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
8 in stock (Europe Warehouse)
| EDP |
|---|
| EP0205125 |
Key Features
- Powder metal forming tap for through & blind holes
- TiN coating
- For general steel, stainless steels and aluminum
- Chamfer Form E
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
2
THREAD PITCH/THREAD PER INCH (TP_TPI)
0.4000
CONNECTION DIAMETER (DCON)
2.8000
DIN
2174
DRIVE SIZE (DRVS)
2.1000
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
45.00
FLUTE COUNT (NOF)
3.00
PREMACHINED HOLE DIAMETER (PHD)
1.82
TAP TYPE
Forming tap
THREAD CHAMFER LENGTH (THCHL)
1.5000
THREAD CHAMFER TYPE FORM (THCHT)
E
THREAD LENGTH (THLGTH)
9.00
TYPE
1
THREAD DIAMETER (TD_MM)
0.0787
THREAD DIAMETER (TD_MM)
2.00
THREAD PITCH (TP)
0.4000
Material
Steel
Stainless steel
Aluminum alloys
Download format drawings
