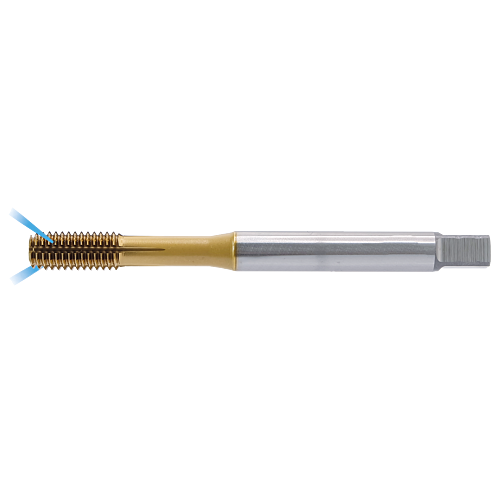

OSGEUR M18x2,5 M-OIL-NRT DIN2174

Add to Wish List
Be the first to review this product
£0.00 Net price excl. VAT
Sign In / Register

This product is available in the warehouse of our European headquarters. The delivery time is approx. 2 working days.

0 in stock (UK Warehouse)
Other warehouses :
13 in stock (Europe Warehouse)
EDP
EP0206214
Key Features
  • Powder metal forming tap for through & blind holes
  • TiN coating
  • For general steel, stainless steels and aluminum
  • Side through coolant
main product photo
Specifications
THREAD TYPE
M
THREAD DIAMETER (TD)
18
THREAD PITCH/THREAD PER INCH (TP_TPI)
2.5000
CONNECTION DIAMETER (DCON)
14.00
DIN
2174
DRIVE SIZE (DRVS)
11.00
HOLE TYPE APPLICATION
Through and Blind Hole
FUNCTIONAL LENGTH (LF)
125.00
FLUTE COUNT (NOF)
7.00
PREMACHINED HOLE DIAMETER (PHD)
16.8
TAP TYPE
Forming tap
THREAD CHAMFER LENGTH (THCHL)
2.5000
THREAD CHAMFER TYPE FORM (THCHT)
C
THREAD LENGTH (THLGTH)
32.00
TYPE
2
THREAD DIAMETER (TD_MM)
0.7087
THREAD DIAMETER (TD_MM)
18.00
THREAD PITCH (TP)
2.5000
Material
P
Steel
M
Stainless steel
N
Aluminum alloys
Download format drawings
