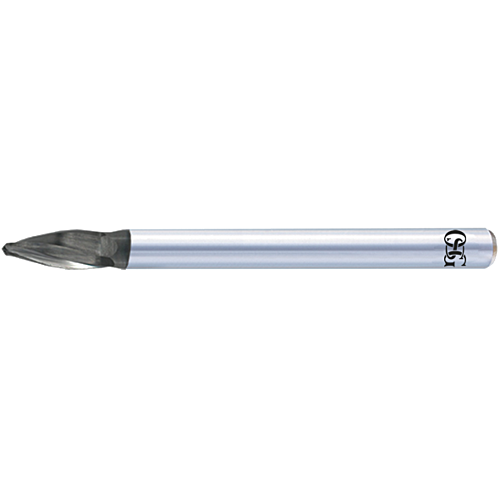

OSG VU-EGG-H R1,5XR50X100 Z2
£0.00 Net price excl. VAT
0 in stock (UK Warehouse)
Other warehouses :
91 in stock (Europe Warehouse)
| EDP | Family |
|---|---|
| W1901273 | VU-EGG |
Specifications
DEPTH OF CUT MAXIMUM (APMX)
16.8760
CUTTING DIAMETER (DC)
8.00
CONNECTION DIAMETER (DCON)
8.00
FUNCTIONAL LENGTH (LF)
100.00
CORNER RADIUS (RE)
1.5000
SECONDARY RADIUS (RE2)
50.00
PERIPHERAL EFFECTIVE CUTTING EDGE COUNT (ZEFP)
2.00
Material
Steel
Cast iron
Titanium alloys
Hardened steel
Download format drawings
Cutting conditions
